HOW IT WORKS

Tecogen’s Tecofrost is a natural gas engine-driven refrigeration package that’s perfect for industrial refrigeration applications from -40°F to +40°F. It’s a critical tool to help owners reduce operating costs and increase resiliency.

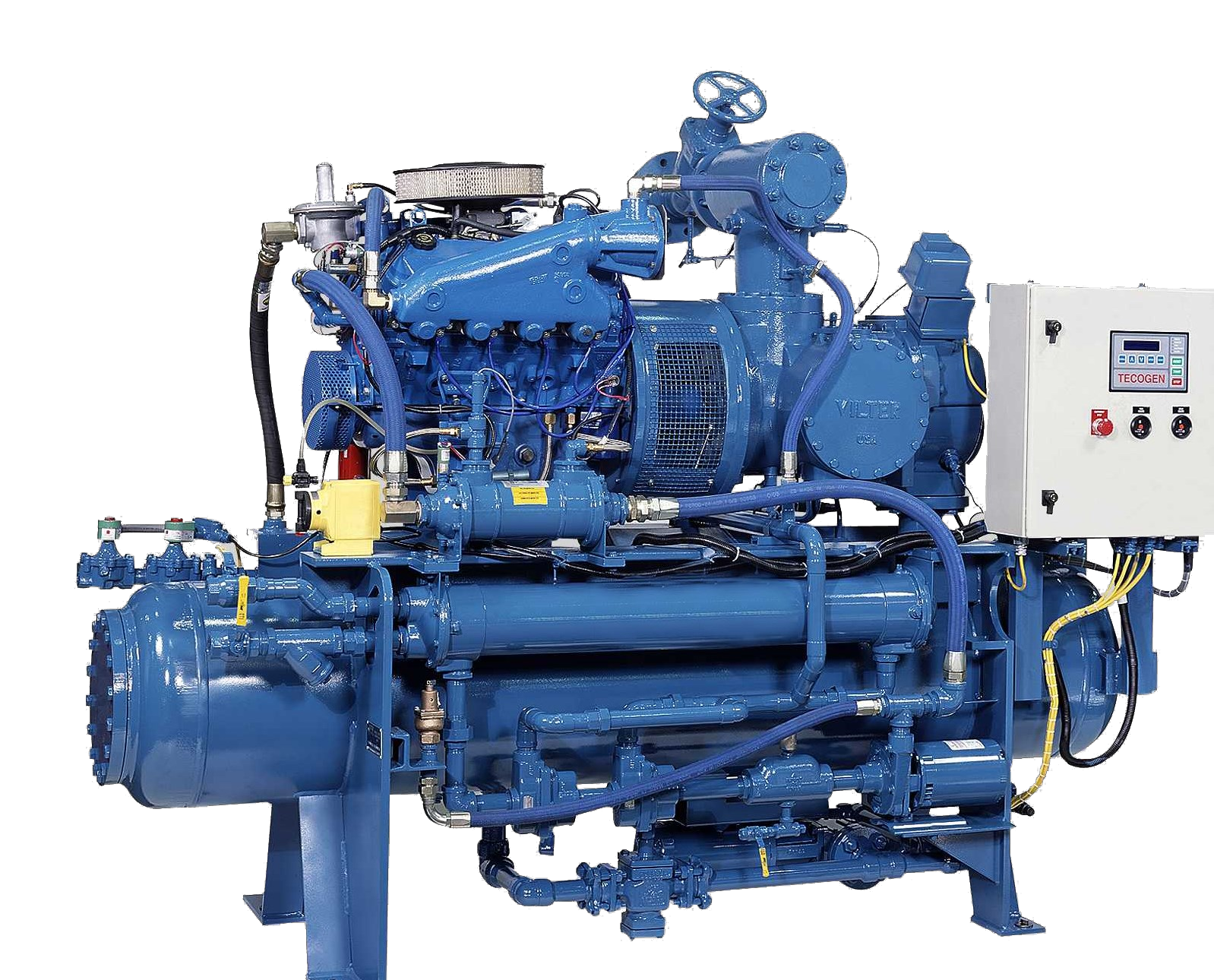

Tecofrost is a rugged 150-horsepower refrigeration machine that features Vilter’s proven VSM 501 single screw compressor. Tecofrost is suited for use with R-717 (ammonia) or other refrigerants.

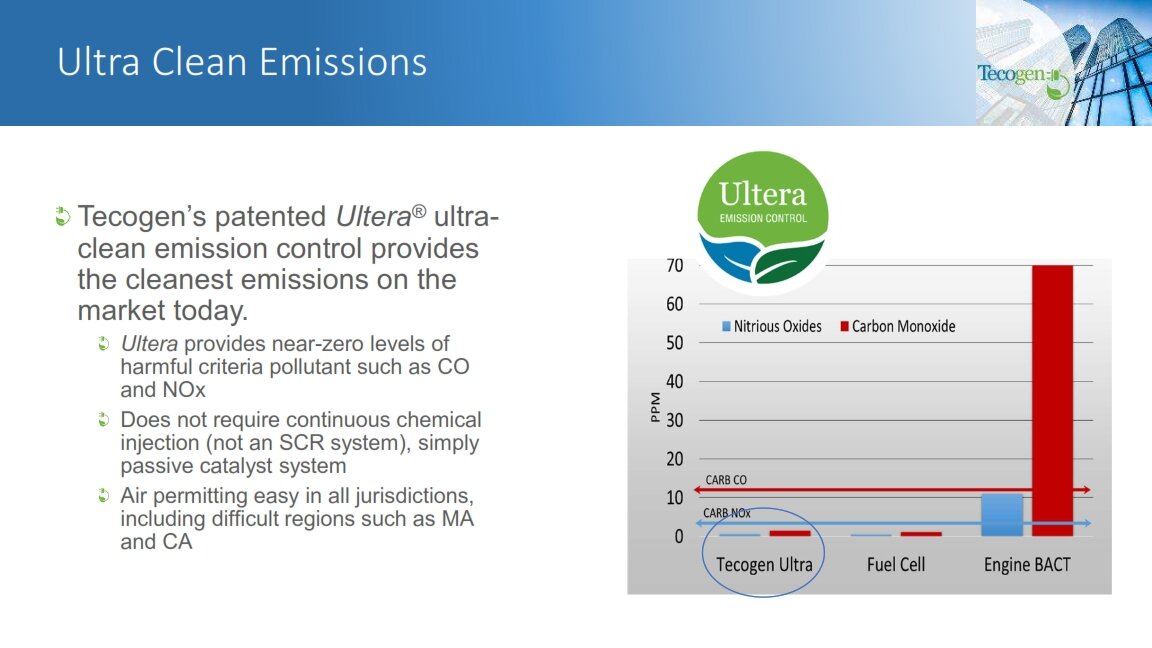

The Tecofrost’s proven and reliable variable-speed TecoDrive™ 7400 engine operates like a VFD, and ensures that high efficiencies are achieved during both full-load and part-load operation. Tecofrost also features Tecogen’s patented Ultera Emissions Controls, which ensure that emissions are kept to ultra-low levels and make it easy to get permitted in all parts of the country.

Tecofrost installation is simple, and very similar to that for an electrically driven refrigeration package, in terms of footprint and connections.

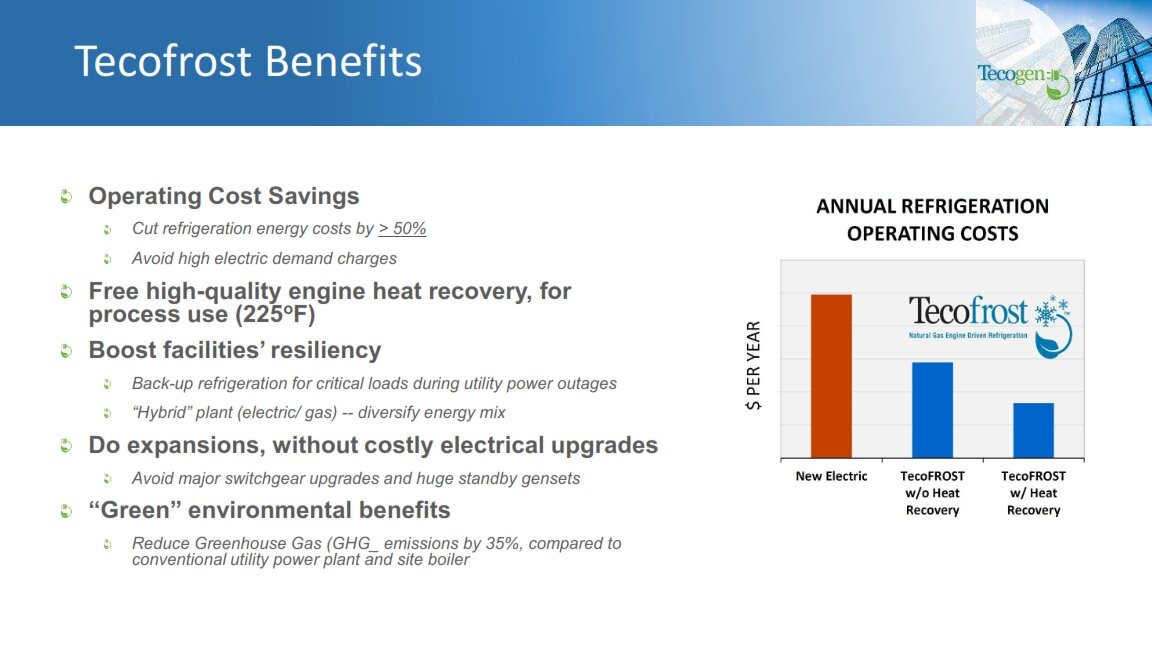

BENEFITS

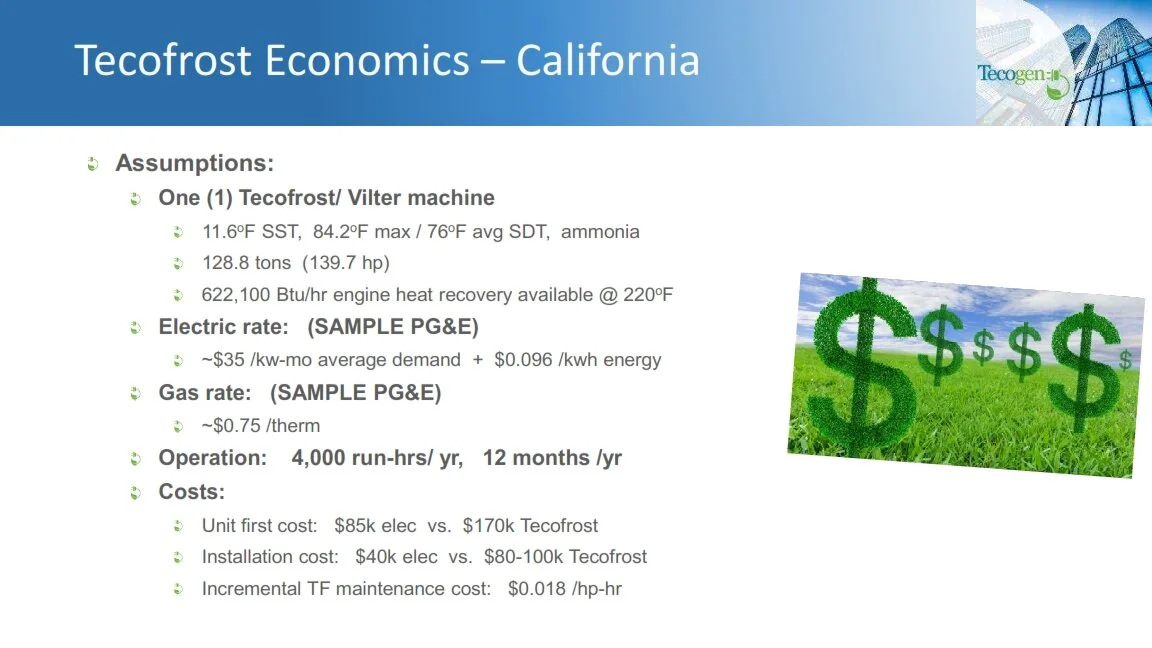

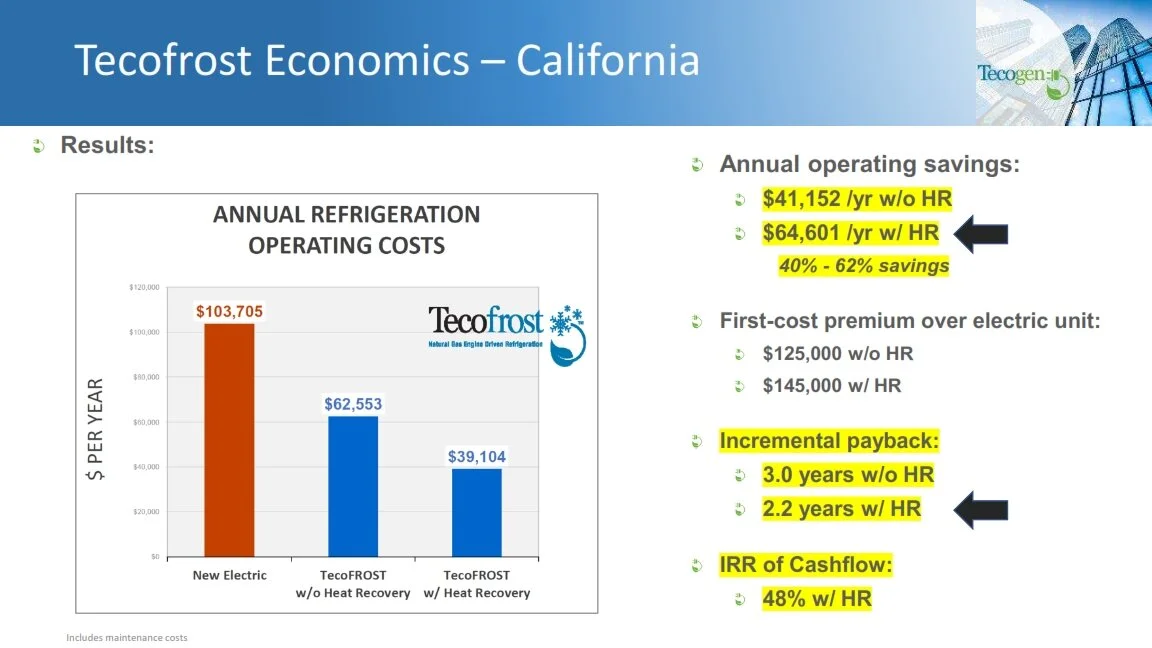

Operating Cost Savings - Cut refrigeration energy costs by 50+% - Avoid high electric demand charges

Boost facilities’ resiliency - Back-up refrigeration for critical loads during utility power outages - Hybrid” plant (electric/ gas) - diversify energy mix

Do expansions, without costly electrical upgrades - Avoid major switchgear upgrades and huge standby gensets

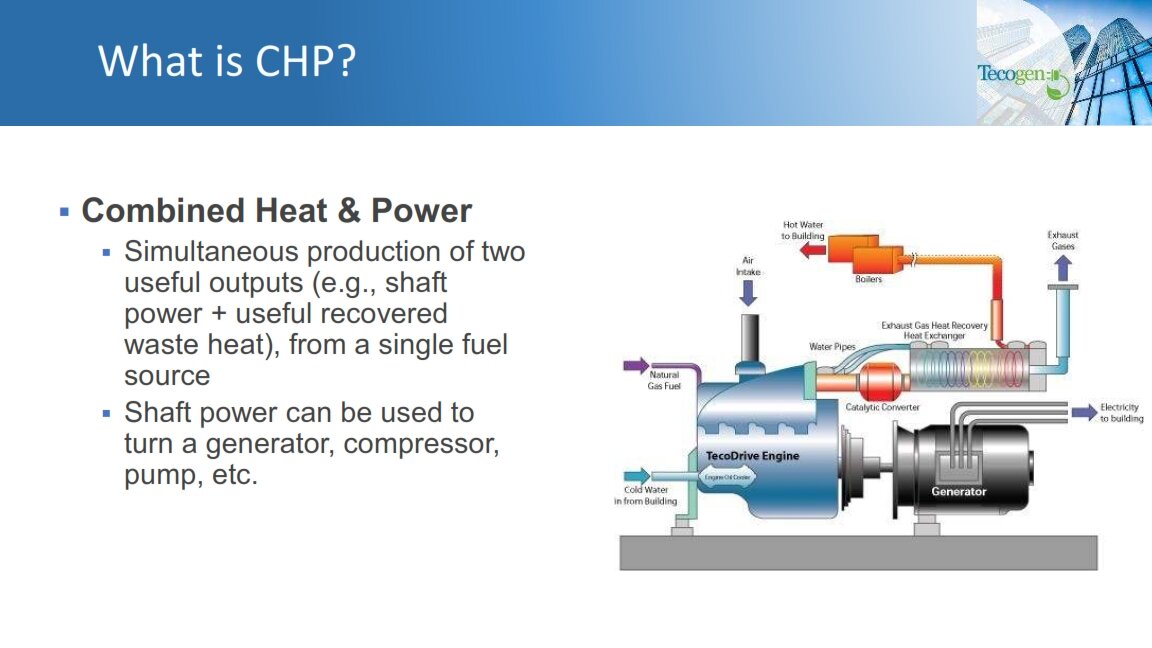

Obtain free high-quality engine heat recovery, for process use (225°F)

“Green” environmental benefits - Reduce GHG emissions by up to 50%, compared to conventional utility power plant and site boiler

Qualify for Federal tax benefits for “mechanical cogeneration”

TECOFROST FEATURES

• TecoDriveTM 7400 industrial, natural gas engine

• Reliable and robust single screw compressor by Vilter

• Variable VI (volume ratio)

• Equivalent footprint to electric packages

• Service sprint mode

• Variable engine speed operation for excellent part load performance and longer life

• TecoNET microprocessor-based control system with precise PID control for fully automatic operation, continuous system monitoring, digital display and fault diagnostics.
